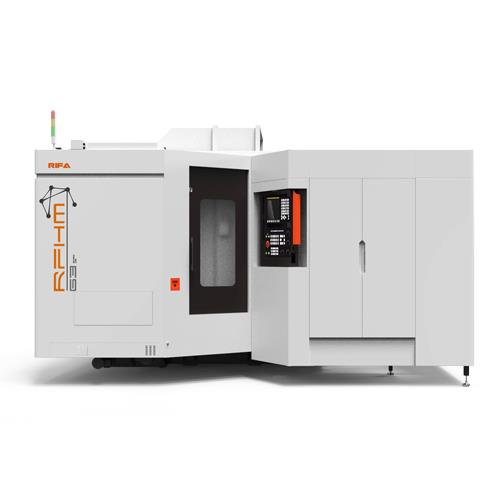

RFMH63卧式加工中心 Horizontal machining center
产品简介
RFMH系列卧式加工中心,在机床结构设计和制造技术等方面吸收了国外的先进技术,通过有限元分析,按模块化设计方法开发研制的新一代卧式加工中心,是集现代机、电技术为一体的高科技产品,具有加工工艺范围广泛,精度及生产效率高的特点。
适合对箱体类、支架类、壳体类等零件进行孔及孔系、轮廓复杂的形、面和各类平面的镗削、铣削、钻削等工序加工。
RFMH series horizontal machining center is a new generation of horizontal machining center developed by absorbing the advanced technology of foreign companies company in terms of machine tool structure design and manufacturing technology. It is a high-tech product integrating modern mechanical and electrical technology, and has the characteristics of wide processing range, high precision and high production efficiency.
It is suitable for boring, milling and drilling of holes, hole systems, complex shapes, surfaces and various planes of box, bracket, shell and other parts.
结构特点
规格参数
  • ●动柱式结构,立柱底部六滑块结构,使移动顺畅性与刚性完美结合。

    ●三轴导轨安装面结合国外的装配工艺,使产品性能得到保障。

    ●床身工作腔采用双螺旋排屑,使切屑物及时排出。

    ●自制鼠牙盘结构工作转台,在借鉴意大利MCM 转台工艺的基础上,使性能更稳定。

    Movable column structure, six slider structure at the bottom of the column, perfect combination of smooth movement and rigidity.

    The installation surface of three-axis guide rail is combined with the assembly process of foreign companies to ensure the product performance.

    The working chamber of the bed adopts double helix to discharge the chips in time.

    Self made working turntable with mouse tooth plate structure, based on italian MCM turntable technology,makes the performance more stable.



  • 规格 RFMH63
    台面尺寸 Table size
    mm
    630 x 630
    承载能力 Loading capacity
    Kg
    1000
    工作台 B 轴分度单位 Table B axis degree unit
    /
    1° ×360(0.001 ° ×360 选购 Opt.)
    最大回转速度 Max rotate speed
    r/min
    11.1
    工作台数量 Table No.
    1
    X 轴行程 X axis travel
    mm
    1000
    Y 轴行程 Y axis travel
    mm
    750
    Z 轴行程 Z axis travel
    mm
    800
    主轴中心至工作台面距离
    Distance from spindle center to table surface
    mm
    60-810
    主轴端面至工作台中心距离
    Distance from spindle end face to table center
    mm
    150-950
    快移速度 Rapid speed
    mm/min
    32000
    进给速度 Feeding speed
    mm/min
    1-10000
    主轴转速 Spindle speed
    rpm
    20-6000
    主轴锥孔锥度 Spindle tapper
    /
    ISO50
    主电机功率 Main motor power
    Kw
    15/18.5
    刀库容量 Tool number
    24(32、40)
    最大刀具直径 Max tool diameter
    mm
    φ110 相邻刀位装刀,
    φ220 相邻刀位未装
    最大刀具长度 Max tool length
    mm
    500
    最大刀具重量 Max tool weight
    Kg
    25
    液压系统压力 Hydraulic system pressure
    MPa
    5-5.5
    气动系统压力 Pneumatic system pressure
    MPa
    0.5-0.8
    冷却系统 Cooling system
    /
    喷嘴 + 水枪
    Nozzle+ water gun
    防护系统 Protection system
    /
    全防护
    Total enclosed protection
    机床重量 ( 净重 )Machine weight(net weight)
    T
    10
    定位精度 Positioning accuracy
    mm
    0.008 B:8″
    重复定位精度 Positioning repeatabiltiy
    mm
    0.004 B:6″
    数控系统 Control system
    /
    FANUC OI MF(SIEMENS 828D)
